Hole Products offers a wide range of custom grout shoes, show more...

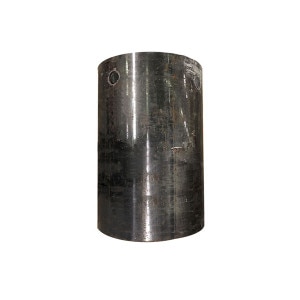

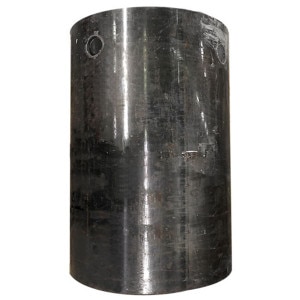

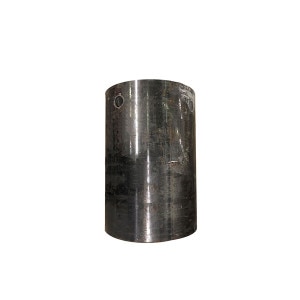

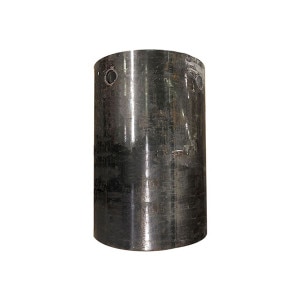

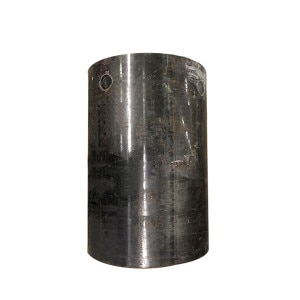

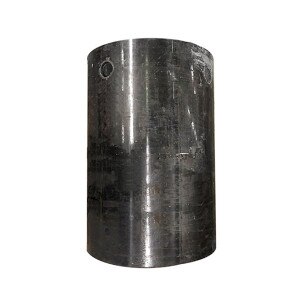

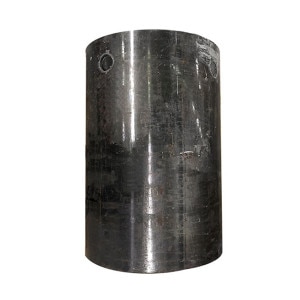

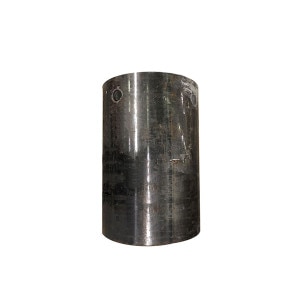

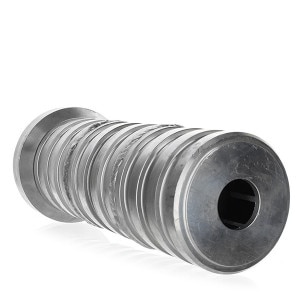

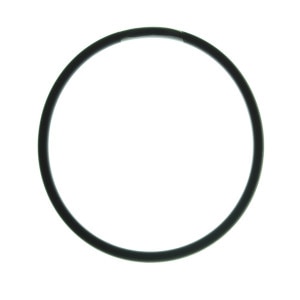

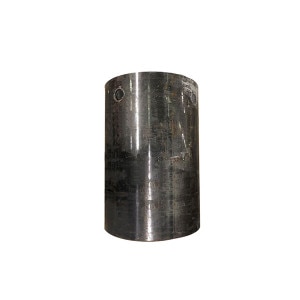

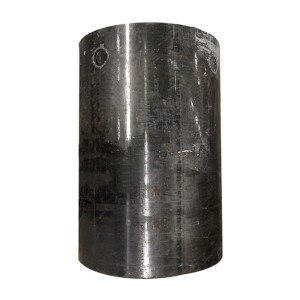

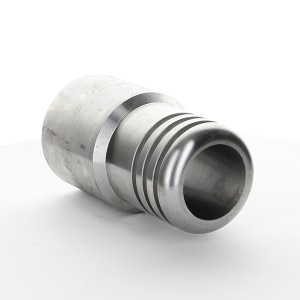

Hole Products offers a wide range of custom grout shoes manufactured to any size, in order to meet your specific project requirements. Grouts shoes are designed to simplify the process of grouting casing into overburden formations. The grout shoe is welded to the end of the casing and installed into the borehole. A stinger is attached to a tremie line and lowered into the casing until the stinger o-rings seat into the grout shoe funnel, providing a tight seal. As grout is pumped through the tremie line, it exits the grout shoe side outlets and is forced up the annulus of the borehole. Double ball valves prevent the grout from traveling back up into the I.D. of the casing. Upon completion of the grouting process, the aluminum check valve is simply drilled out, and the borehole can continue into bedrock. Please contact your Hole Products representative for additional product details.

show less
