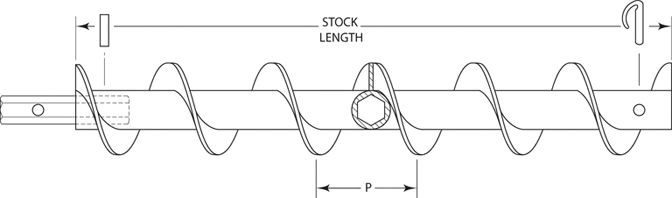

| Hex Continuous flight Augers | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hole Size | Auger Diameter | Hex Conn. | Pitch (p) | Stock Length | Stock Weight | Part # | ||||||
| IN | MM | IN | MM | IN | MM | IN | MM | ft | m | lb | kg | |
| 2 1/2" | 64 | 2 3/8" | 60 | 13/16" | 21 | 2" | 51 | 5' | 1.5 | 18 | 8.2 | 1550012 |
| 3" | 76 | 2 5/8" | 67 | 13/16" | 21 | 2" | 51 | 5' | 1.5 | 22 | 10.0 | 1550020 |
| 3 1/2" | 89 | 3 1/4" | 83 | 1 1/8" | 29 | 3 1/3" | 85 | 5' | 1.5 | 30 | 13.6 | 1550003 |
| 4 1/2" | 114 | 4" | 102 | 1 1/8" | 29 | 3 1/3" | 85 | 5' | 1.5 | 34 | 15.4 | 1550006 |
| 4 1/2" | 114 | 4" | 102 | 1 5/8" | 41 | 3 1/3" | 85 | 5' | 1.5 | 54 | 24.5 | 1550005 |
| 5" | 127 | 4 1/2" | 114 | 1 1/8" | 29 | 4" | 102 | 5' | 1.5 | 36 | 16.3 | 1550115 |
| 5" | 127 | 4 1/2" | 114 | 1 5/8" | 41 | 4" | 102 | 5' | 1.5 | 54 | 24.5 | 1550001 |
| 6" | 152 | 5 1/2" | 140 | 1 1/8" | 29 | 5" | 127 | 5' | 1.5 | 40 | 18.1 | 1550030 |
| 6" | 152 | 5 1/2" | 140 | 1 5/8" | 41 | 5" | 127 | 5' | 1.5 | 58 | 26.3 | 1550007 |
| 7" | 178 | 6" | 152 | 1 5/8" | 41 | 5" | 127 | 5' | 1.5 | 64 | 29.0 | Special Order |
| 8" | 203 | 7" | 178 | 1 5/8" | 41 | 7" | 178 | 5' | 1.5 | 72 | 32.7 | 1550040 |
| 12" | 305 | 10" | 254 | 1 5/8" | 41 | 8" | 203 | 5' | 1.5 | --- | --- | 1550015 |
