Mincon MP80 Hammer

SKU: 3750037

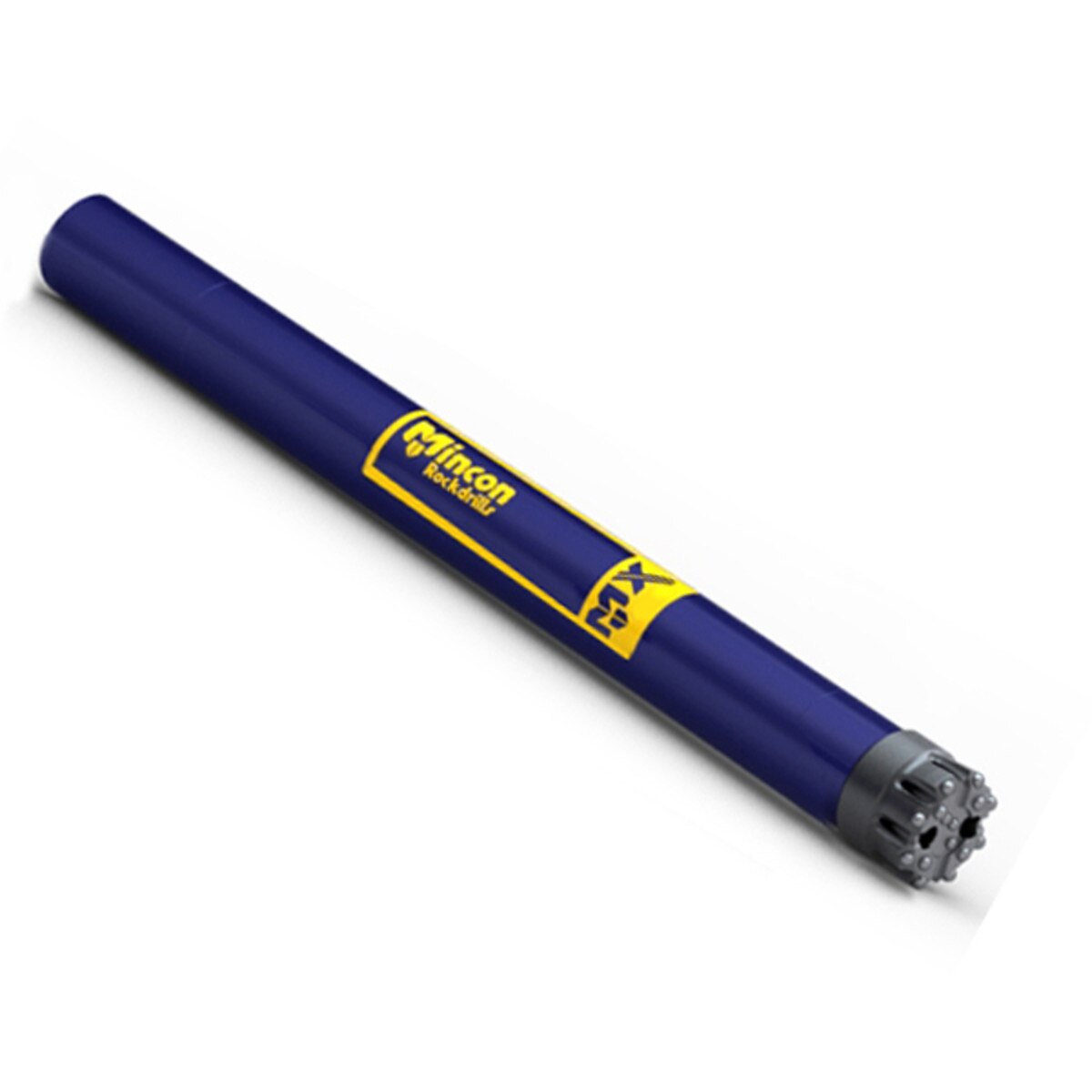

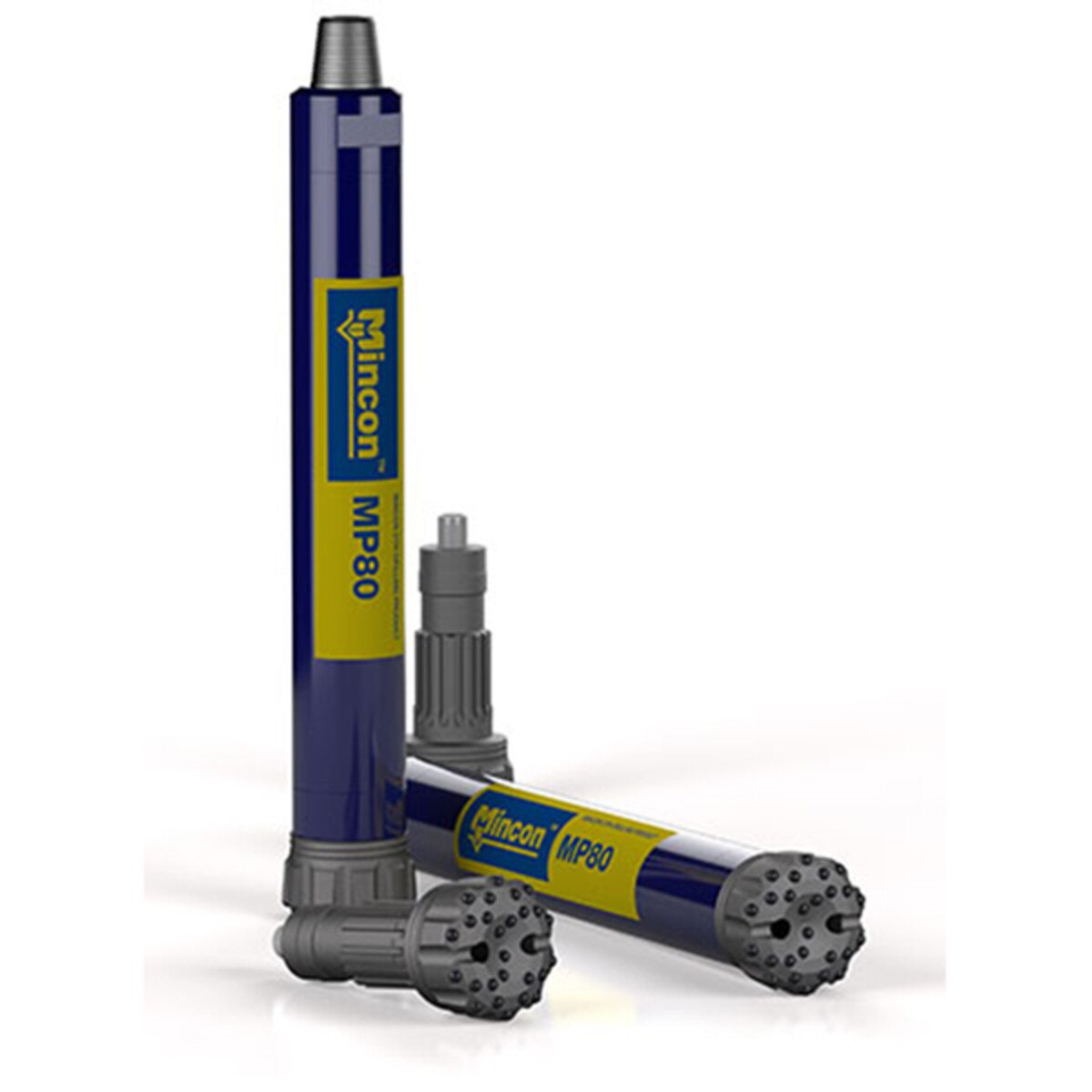

The Mincon MP80 hammer is designed around proven technology to perform at the top end of the performance scale compared to other tools on the market. These tools are excellent for all types of drilling applications including residential geothermal, production quarry drilling, seismic drilling and small construction drilling.

Key Features and Benefits

  • Patented features maximize energy output and reduce service requirements.
  • Fewer internal components minimize service requirements.
  • Valveless, high frequency design ensures smooth operation.
  • Hardened wear sleeve for optimum wear resistance even in the most abrasive conditions.
  • Multi-start threads on backhead and chuck ensure easy coupling/uncoupling of hammer.
  • Unique internal mount system eliminates the need for wear shims and special assembly tools.
  • All critical internal components are heat treated under strict control to maximize tool longevity.
SpecificationsMetricImperial
Hammer Outside Diameter181mm7.15"
Hammer Length (Less Bit, Backhead Shoulder to Chuck)1186mm46.7"
Backhead Spanner Flat Size140mm5.5”
Drill Bit Shank TypeQL80
Minimum Bit Size203mm8.0"
Hammer Weight (Less Bit)173.2Kgs381Lbs
Drill Bit Weight (216mm/8 1/2”)53.1Kgs117Lbs
Piston Weight39Kgs86Lbs
Backhead Stand Off0.75mm0.030”
Make up Torque8135-10850 NM6000-8000 FT Lbs
Wear Sleeve Reverse Limit172mm6.770"
Wear Sleeve Discard Limit169mm6.650”
Recommended Minimum Air Package425 l/s @ 24.1 Bar900 cfm @ 350 psi


Item #Part NumberDescription
MD801AS02Mincon MP80 (4 1/2" A.P.I. Reg. Pin)
1MD801BH01Backhead (4 1/2" A.P.I. Reg. Pin)
2MD822OR01O Ring
3MB506CH01Choke Blank
4MD802CV01Check Valve
5MB503SP01Spring
6MD805LR01Lock Ring
7MD804SM01Steel Make-Up Ring
8MD807DR01Air Distributor
9MD821OR01O Ring
10MD820OR01O Ring
11MD809SR01Seating Ring
12MD808IC01Inner Cylinder
13MD810PN02Piston
14MD811WS01Wear Sleeve
15MD812PR01Piston Retaining Ring
16MD813BB01Aligner
17MD822OR01O Ring
18MD814BR02Bit Retaining Ring
19MD821OR01O Ring
20MD815CK02Chuck (QL80)
21MD826SK02Service Kit

 MD826SK02Service Kit
3MB506CH01Choke Blank
 MB506CH02Choke 1/8” (3.2mm)
 MB506CH03Choke 3/16” (4.8mm)
5MB503SP01Spring
 MD825OK02O Ring Kit

 MD825OK02O Ring Kit
2MD822OR01O Ring
9MD821OR01O Ring
10MD820OR01O Ring
17MD822OR01O Ring
19MD821OR01O Ring
